Stainless Steel Sheet
Specifications
|
COLD ROLLED STAINLESS STEEL SHEET | |||
|
Grade: 201,202,409,410s,430,304/304L,316l,321,317L and so on. | |||
|
Standard: ASTM/ASME 240/480,JIS 4305,DIN EN 10088-2 | |||
|
Thickness |
Width |
Length |
Surface |
|
0.3mm ~ 6.0mm |
1220mm ~ Max. 1540mm |
1000MM ~ Max.12000mm |
2B,BA,HL,NO.4,8K,SB |
|
HOT ROLLED STAINLESS STEEL PLATE | |||
|
Grade: 409,410s,430,304/304L,316L,321,317L,310S,2205,2507 and so on. | |||
|
Standard: ASTM/ASME 240/480,JIS 4305,DIN EN 10088-2 | |||
|
Thickness |
Width |
Length |
Surface |
|
3.0mm—80.0mm |
1220MM ~ Max.2000mm |
1000MM ~ Max.12000mm |
NO.1 |
|
CHEMICAL COMPOSITION ( IN PERCENTAGE ) | ||||||||||
|
Grade |
C (Max) |
Mn (Max) |
P (Max) |
S (Max) |
Si (Max) |
Cr |
Ni |
Mo |
N (Max) |
Cu/ Others |
|
201 |
0.15 |
5.50-7.50 |
0.060 |
0.030 |
1.00 |
16.00-18.00 |
3.50-5.50 |
- |
0.25 |
|
|
202 |
0.15 |
7.50-10.00 |
0.060 |
0.030 |
1.00 |
17.00-19.00 |
4.00-6.00 |
- |
0.25 |
|
|
304 |
0.08 |
2.00 |
0.045 |
0.030 |
1.00 |
18.00 - 20.00 |
8.00- 10.50 |
- |
0.10 |
- |
|
304L |
0.030 |
2.00 |
0.045 |
0.030 |
1.00 |
18.00 - 20.00 |
8.00- 12.00 |
- |
0.10 |
- |
|
316L |
0.030 |
2.00 |
0.045 |
0.030 |
1.00 |
16.00 - 18.00 |
10.00- 14.00 |
2.00 - 3.00 |
0.10 |
- |
|
321 |
0.08 |
2.00 |
0.045 |
0.030 |
0.75 |
17.00 - 19.00 |
9.00 - 12.00 |
- |
0.10 |
Ti5xC Min |
|
409 |
0.08 |
1.00 |
0.040 |
0.010 |
1.00 |
10.50 - 11.75 |
0.50 |
- |
- |
Ti= 6x (C+ N) |
|
410S |
0.08 |
1.00 |
0.040 |
0.030 |
1.00 |
11.50- 13.50 |
0.60 |
- |
- |
- |
|
430 |
0.12 |
1.00 |
0.040 |
0.030 |
1.00 |
16.00 - 18.00 |
0.75 |
- |
- |
- |
Products & Packages
 |
 |

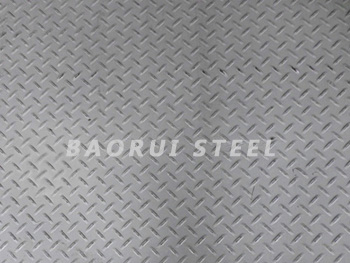

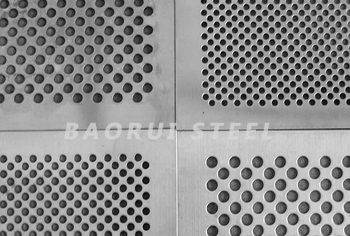

| Checkered Stainless Steel Plate | Stainless Steel Perforated Plate |
 |
 |

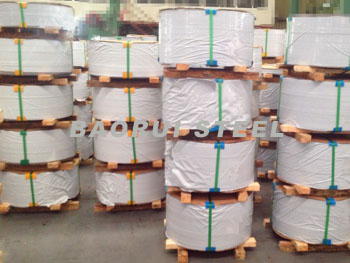

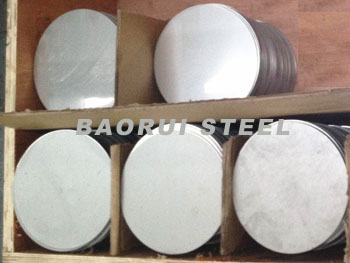

| Disc processing | Disc processing Packing |
 |
 |

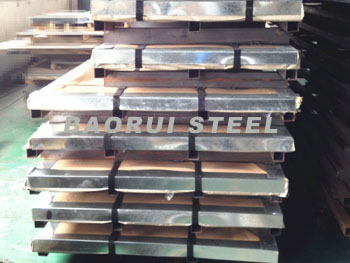

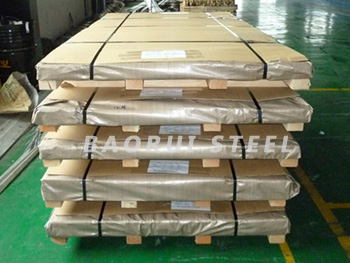

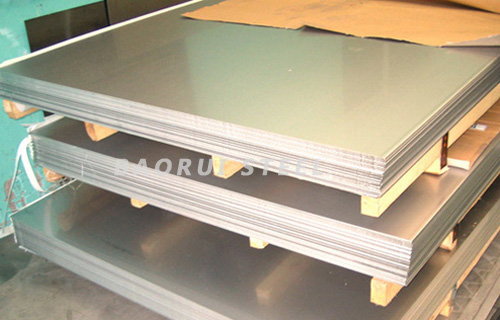

| Stainless Steel Sheet Packing | Stainless Steel Metal Plate |
 |
 |

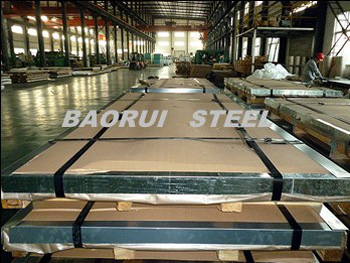

| Hot Rolled Stainless Steel Plate Packing | Stainless Steel Sheet Packing |
 |
 |

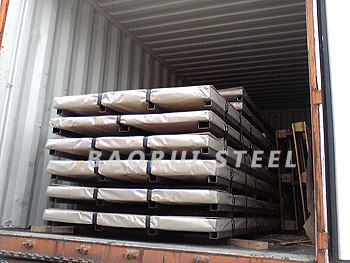

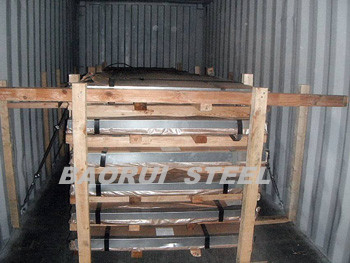

| Stainless Steel Sheet Loading | Stainless Steel Sheet Loading |
