Stainless Steel Round Bar
Specifications
|
COLD DRAWN STAINLESS STEEL BARS | |||
|
Grade: 304/304L,316L,321,317L and so on. | |||
|
Standard: ASTM/ASME A276 | |||
|
Diameter |
Length |
Tolerance |
Surface |
|
2.0mm—80.0mm |
1000MM ~ Max.12000mm |
H9,H11,H13, |
Bright Finish |
|
HOT ROLLED STAINLESS STEEL BARS | |||
|
Grade: 304/304L,316L,321,317L and so on. | |||
|
Standard: ASTM/ASME A276, | |||
|
Diameter |
Length |
Tolerance |
Surface |
|
12.0—400.0mm |
1000MM ~ Max.12000mm |
H9,H11,H13, |
Black, Peeling. |
|
CHEMICAL COMPOSITION ( IN PERCENTAGE ) | ||||||||||
|
Grade |
C (Max) |
Mn (Max) |
P (Max) |
S (Max) |
Si (Max) |
Cr |
Ni |
Mo |
N (Max) |
Cu/ Others |
|
304 |
0.08 |
2.00 |
0.045 |
0.030 |
1.00 |
18.00 - 20.00 |
8.00- 10.50 |
- |
0.10 |
- |
|
304L |
0.030 |
2.00 |
0.045 |
0.030 |
1.00 |
18.00 - 20.00 |
8.00- 12.00 |
- |
0.10 |
- |
|
316L |
0.030 |
2.00 |
0.045 |
0.030 |
1.00 |
16.00 - 18.00 |
10.00- 14.00 |
2.00 - 3.00 |
0.10 |
- |
|
321 |
0.08 |
2.00 |
0.045 |
0.030 |
0.75 |
17.00 - 19.00 |
9.00 - 12.00 |
- |
0.10 |
Ti5xC Min |
Products & Packages
 |
 |

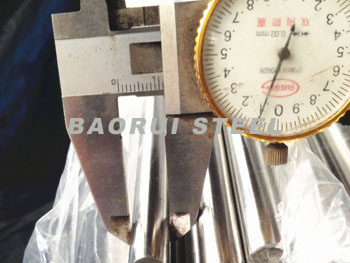

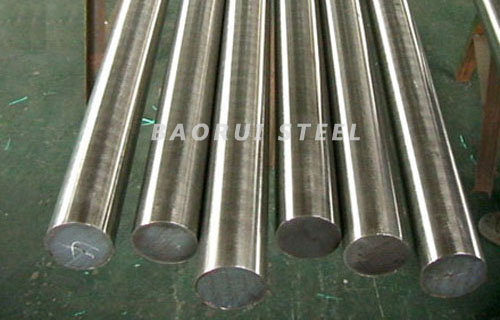

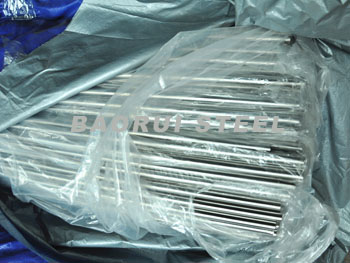

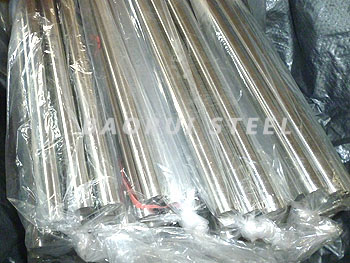

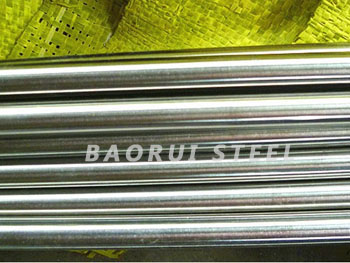

| Stainless Steel Round Bar | Stainless Steel Round Bar Packing |
 |
 |

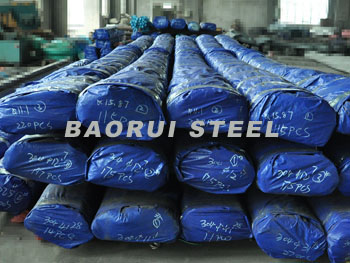

| Stainless Steel Round Bar | Stainless Steel Round Bar Packing |
 |
 |

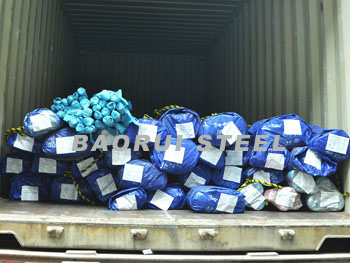

| Stainless Steel Round Bar Packing | Stainless Steel Round Bar Loading |
